Omron H8BM-R Successor Now Available: Toho Technology TCN9 Series Multi-Counter/Timer
2026.10.02
Products
Yashima Sangyo now supplies the TCN9 Series multi-counter/timer from Toho Technology Corporation. The TCN9 is the successor to Omron’s H8BM-R Series, which Omron is discontinuing. Omron has no replacement of its own and recommends the TCN9 in its official end-of-production notice. Toho Technology began releasing the TCN9 in stages from July 1, 2026.
🔴 Discontinuation Schedule for the Omron H8BM-R Series
- Last order date: End of December 2026
- Last shipment date: End of March 2027
Both dates also apply to the H8BM-R options (Y92S-25 packing and Y92S-26 short-circuit plate). If you use the H8BM-R in your equipment, we recommend planning the switch to the TCN9 soon.
🔴 Drop-In Replacement: Fully Compatible with the H8BM-R
Omron’s notice rates the TCN9 as compatible in all of these areas: body color, outer dimensions, wiring and terminal layout, mounting (panel cutout) dimensions, ratings and performance, operating characteristics, and operation. You can replace an existing H8BM-R without changing the panel cutout or the wiring.
Model Cross-Reference
| Omron (Discontinued) | Toho Technology (Successor) | Type |
|---|---|---|
| H8BM-RA DC24 | TCN9-AJ | 3-stage setting, Japanese label |
| H8BM-RAD DC24 | TCN9-BJ | 1-stage setting, Japanese label |
| H8BM-RB DC24 | TCN9-AE | 3-stage setting, English label |
| H8BM-RBD DC24 | TCN9-BE | 1-stage setting, English label |
| Y92S-25 (Packing) | TCN92S-25 | Option |
| Y92S-26 (Short-circuit plate) | TCN92S-26 | Option |
A front cover (TCN92A-72C) and packing come with every unit.

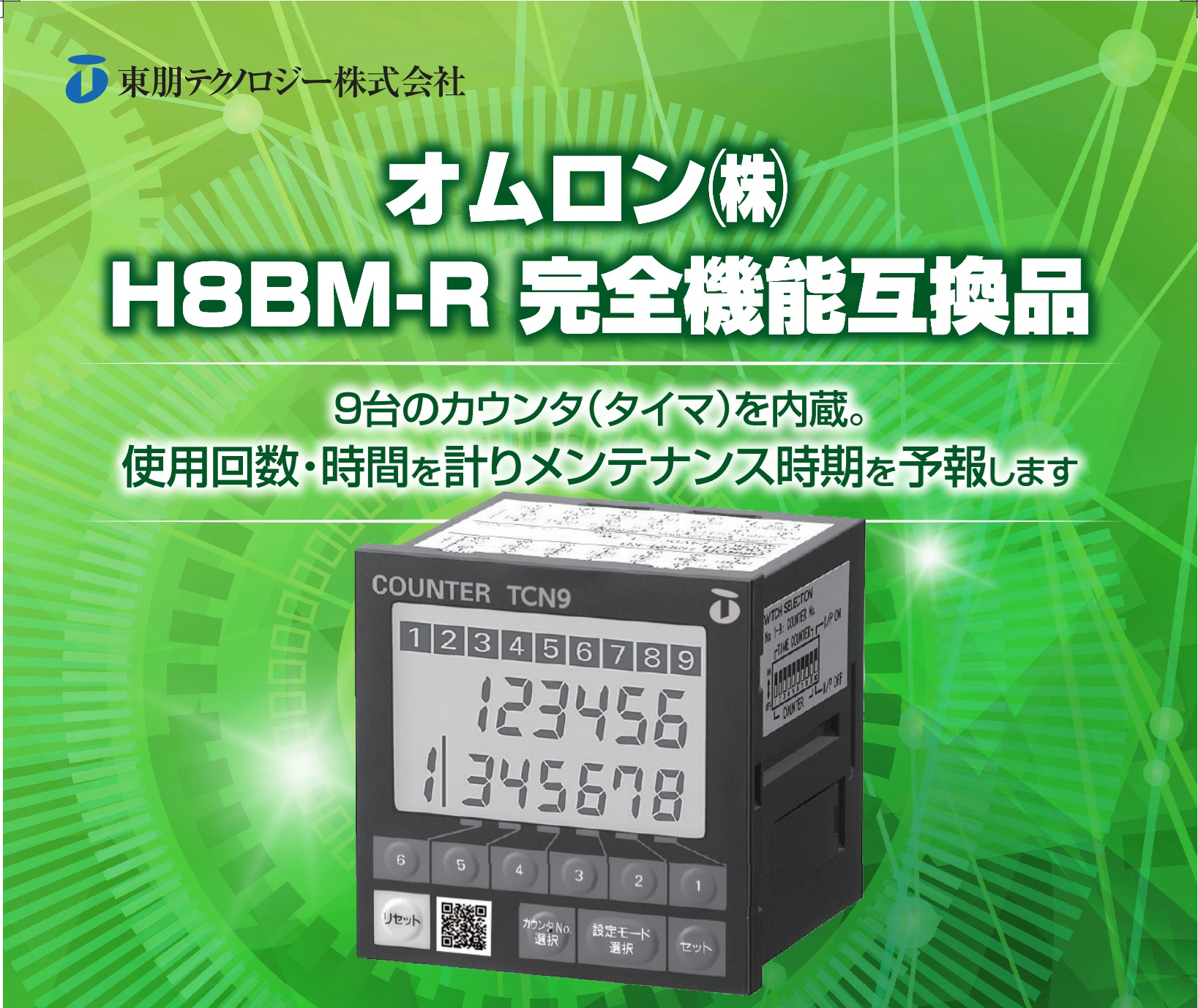

🔴 About the TCN9 Series
The TCN9 has 9 built-in counters that track how many times a machine is used and how long it runs. It then warns operators in advance when maintenance is due. You can also use it as a multi-stage preset counter.
- 9 counters in one unit. Each one can be a counter or a totalizing timer, and you can mix the two.
- Individual forecast outputs for each counter. The 3-stage type adds a pre-forecast display and an equipment-stop output.
- IP54 oil-resistant front panel, so the setting area holds up against oil and water.
- Per-digit keys make set values easy to change.
- Compact size: DIN 72 × 72 mm, with a short body only 79 mm deep.
- Key protect prevents accidental changes.
- Multi NPN/PNP output, and DC 2-wire sensors connect directly.
- Short-circuit enable input built in as standard, so you can build a multi-stage counter without external short-circuit wiring.
- Power-failure memory on EEPROM, which keeps data for 10 years or more.
Main Specifications
- Supply voltage: 24 VDC (85–110% of rated voltage)
- Max. counting speed: 30 Hz on count inputs 1–7; 30 Hz/500 Hz switchable on count inputs 8 and 9
- Control output: open collector, 30 VDC max., 100 mA max.
- Display: 7-segment LCD with backlight
- Weight: approx. 250 g (body only)
🔴 Points to Note When Replacing
- Power consumption is about 2.2 W at 26.4 VDC. The H8BM-R draws about 1.7 W.
- Output mode: The TCN9 has no named “F mode.” It behaves the same way, though: counting continues after the set value is reached.
- Safety standards: UL61010-1 and CAN/CSA-C22.2 No. 61010-1:12. The H8BM-R was certified to UL508 and CSA C22.2 No. 14. EMC compliance (EN61326) is unchanged.
To request pricing, datasheets, or samples for the TCN9 Series, or to discuss replacing H8BM-R units in your equipment, please contact Yashima Sangyo.
